Dimensions //
550mm (l) x 250mm (w) x 125mm (d)
Power supply //
220-230V 22 watts
Set up //
Wall mounted. Easy for marking, four fixing points.
Construction //
Stainless steel extrusion, IPX5 Waterproof rating.
Weight //
6kg
Operation //

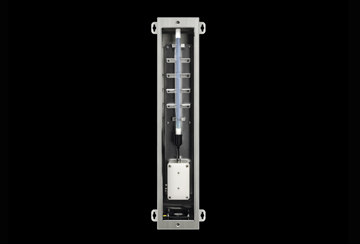

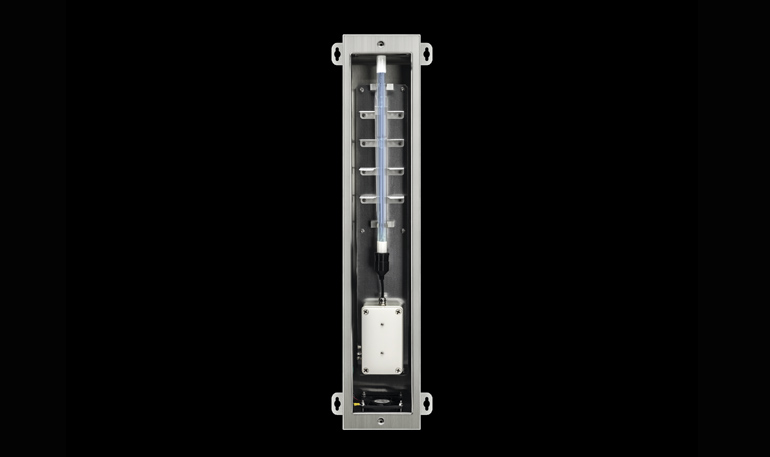

1 x 20W specialist UV lamps 24v DC IP68 Fan with 150 CFM free air flow.
AIRsteril ULTSA systems use ultraviolet germicidal irradiation and advanced oxidation to improve air quality in demanding processing environments. Contaminated air rises into the unit through thermal convection and passes through an internal treatment chamber where airborne microorganisms are destroyed and odour causing compounds are broken down. The treated air is then dispersed back into the area to reduce airborne contaminants and help manage the strong smells associated with food production and clean waste operations.
The system is engineered to maximise dwell time within the treatment chamber and to deliver effective, low energy operation without the need for fans. This provides continuous air treatment suitable for smaller enclosed rooms where odour build up can occur quickly.
